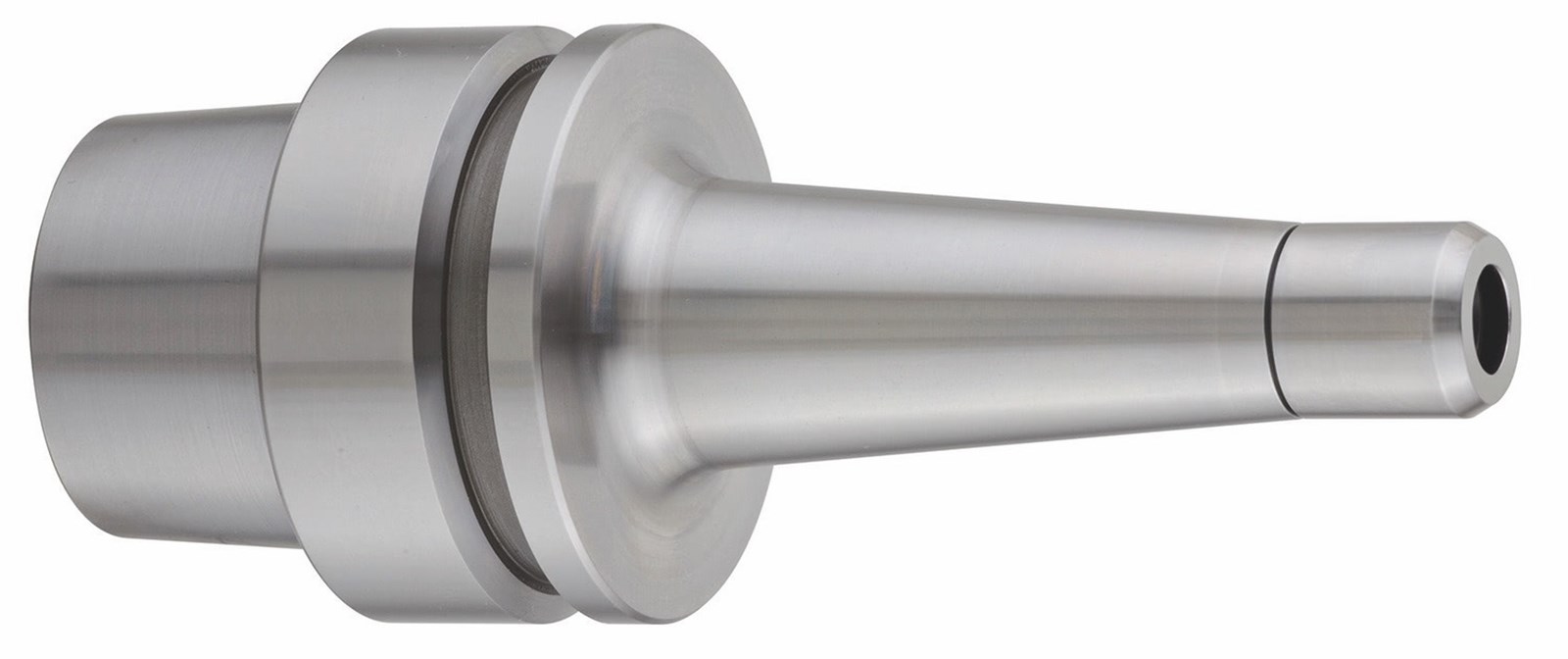

Chucks CENTRO|P universal
CPC16M-HSK-E50-A=100
| A | 100 mm |
| D = Wrench Ø | 22 mm |
| max. 1/min | 30000 1/min |
| E | 73 mm |
| D1 | 26 mm |
| a | 2,5° Grad |
| L1 | 68,5 mm |
| L2 | 32 mm |
| L3 | 25 mm |
| G | M11x1 |
Note: May include deviations
Chucks CENTRO|P universal
CPC16M-HSK-E50-A=100
- Order number: 43345001000
- EAN-NR: 43345001000
- conical
- good damping
- high holding force
- high runout accuracy
- rigid
- universal
Quantity:
Availability:
Immediately
~ 5 working days
3 weeks
4 weeks
5 weeks
6 weeks
On request
Prices plus VAT plus shipping costs

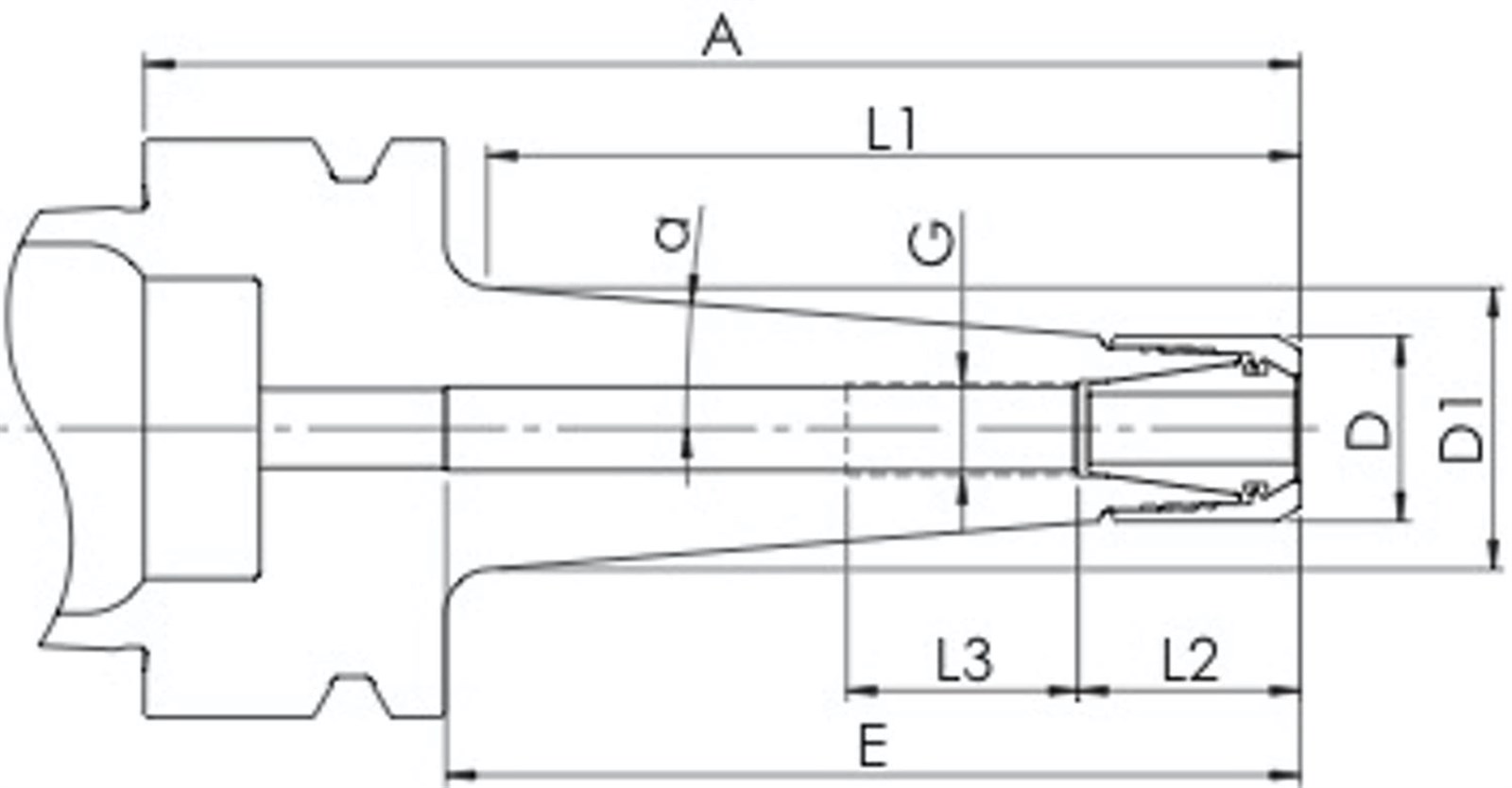

TECHNICAL DATA
CPC16M-HSK-E50-A=100
| A | 100 mm |
| D = Wrench Ø | 22 mm |
| max. 1/min | 30000 1/min |
| E | 73 mm |
| D1 | 26 mm |
| a | 2,5° Grad |
| L1 | 68,5 mm |
| L2 | 32 mm |
| L3 | 25 mm |
| G | M11x1 |
TECHNICAL DATA
CPC16M-HSK-E50-A=100
| A | 100 mm |
| D = Wrench Ø | 22 mm |
| max. 1/min | 30000 1/min |
| E | 73 mm |
| D1 | 26 mm |
| a | 2,5° Grad |
| L1 | 68,5 mm |
| L2 | 32 mm |
| L3 | 25 mm |
| G | M11x1 |
