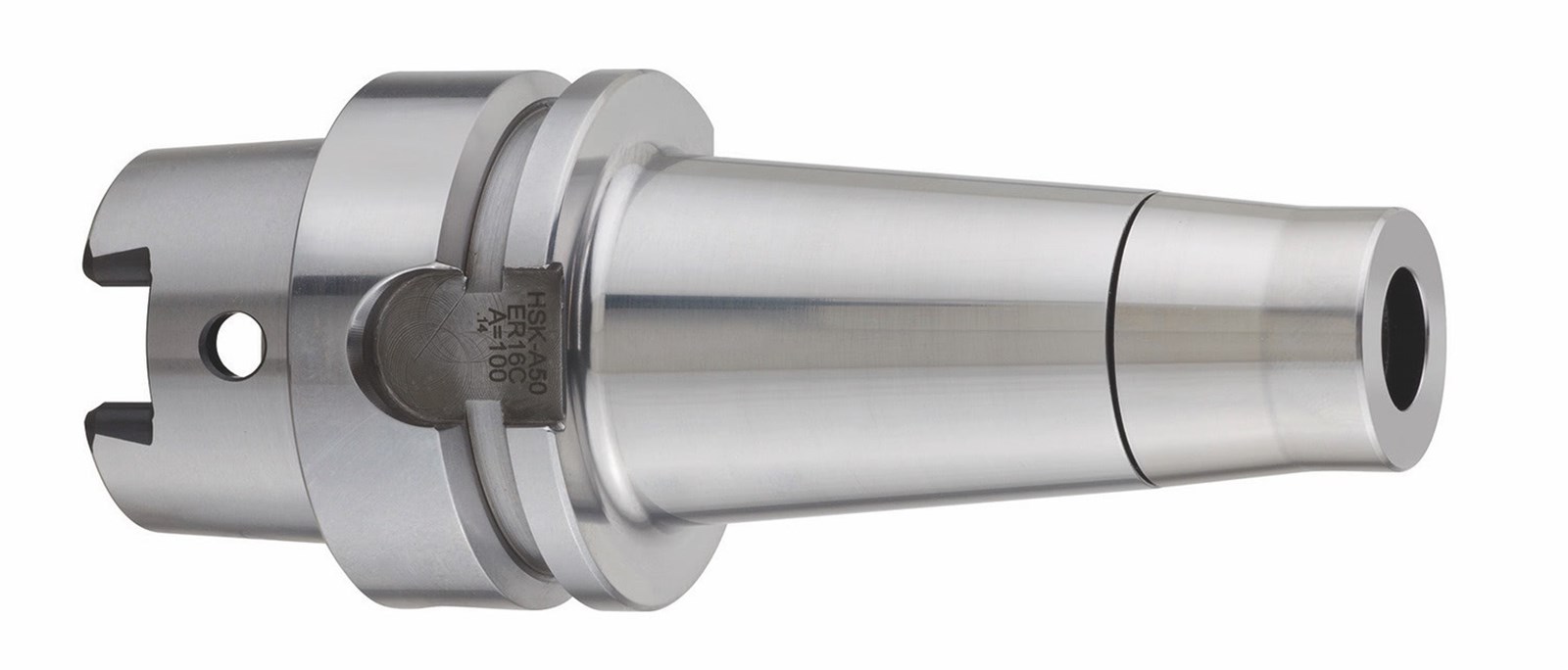

Chucks CENTRO|P universal
CPC16-HSK-A50-A=65
| A | 65 mm |
| D = Wrench Ø | 24 mm |
| max. 1/min | |
| E | 44 mm |
| D1 | 28,9 mm |
| a | 4,5° Grad |
| L1 | 36,5 mm |
| L2 | --- mm |
| L3 | --- mm |
| G | --- |
Note: May include deviations
Chucks CENTRO|P universal
CPC16-HSK-A50-A=65
- Order number: 44325400650
- EAN-NR: 44325400650
- conical
- good damping
- high holding force
- high runout accuracy
- rigid
- universal
Quantity:
Availability:
Immediately
~ 5 working days
3 weeks
4 weeks
5 weeks
6 weeks
On request
Prices plus VAT plus shipping costs

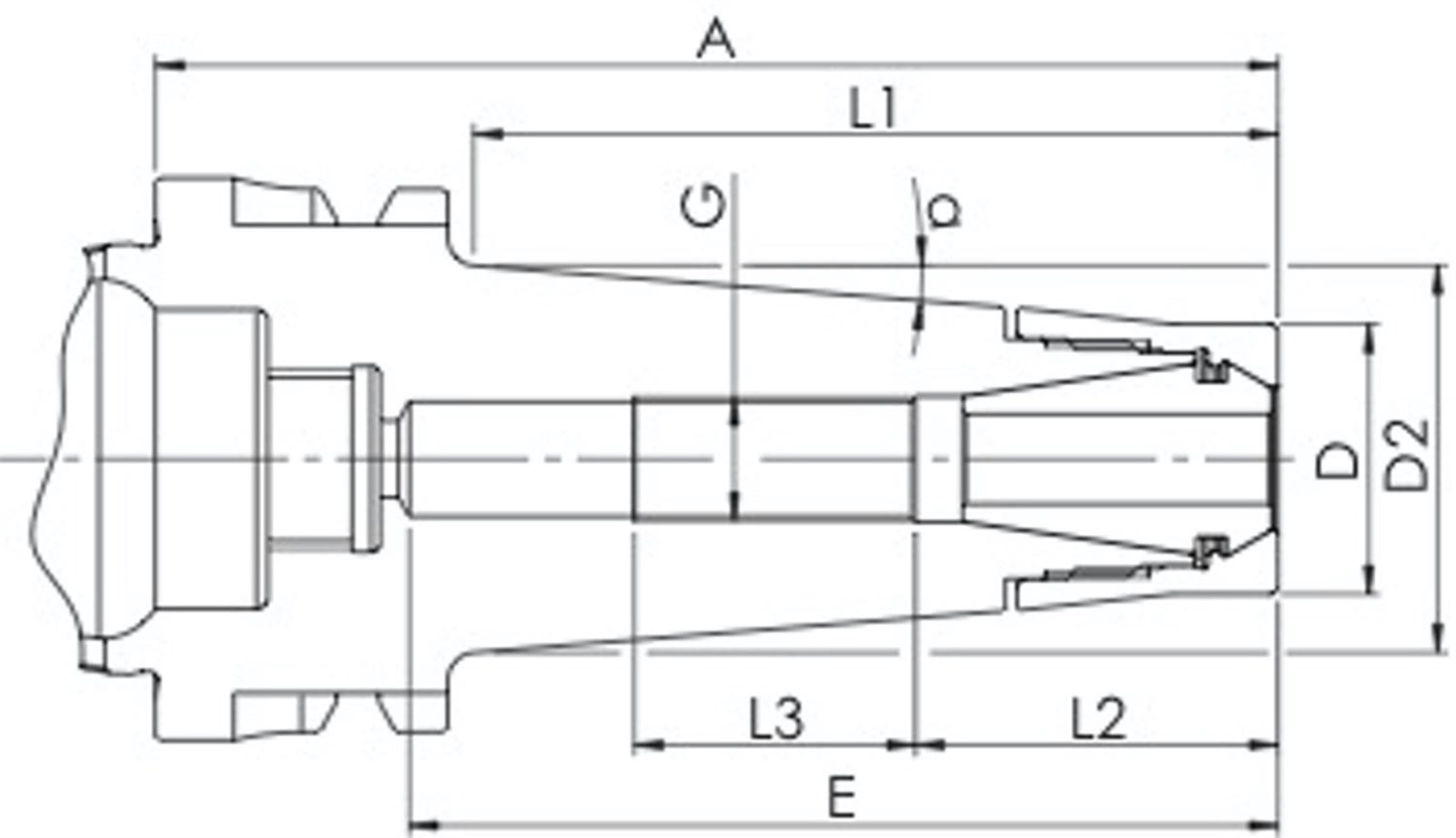

TECHNICAL DATA
CPC16-HSK-A50-A=65
| A | 65 mm |
| D = Wrench Ø | 24 mm |
| max. 1/min | |
| E | 44 mm |
| D1 | 28,9 mm |
| a | 4,5° Grad |
| L1 | 36,5 mm |
| L2 | --- mm |
| L3 | --- mm |
| G | --- |
TECHNICAL DATA
CPC16-HSK-A50-A=65
| A | 65 mm |
| D = Wrench Ø | 24 mm |
| max. 1/min | |
| E | 44 mm |
| D1 | 28,9 mm |
| a | 4,5° Grad |
| L1 | 36,5 mm |
| L2 | --- mm |
| L3 | --- mm |
| G | --- |
