Chucks MPC - Mini Precision
MPC16C-HSK-E40-A=55

MPC16C-HSK-E40-A=55
MPC16C-HSK-E40-A=55
A55 mm
D = Wrench Ø22 mm
max. 1/min42000 1/min
E32 mm
D123,5 mm
a4,5° Grad
L131,5 mm
L2--- mm
L3--- mm
G---


Note: May include deviations

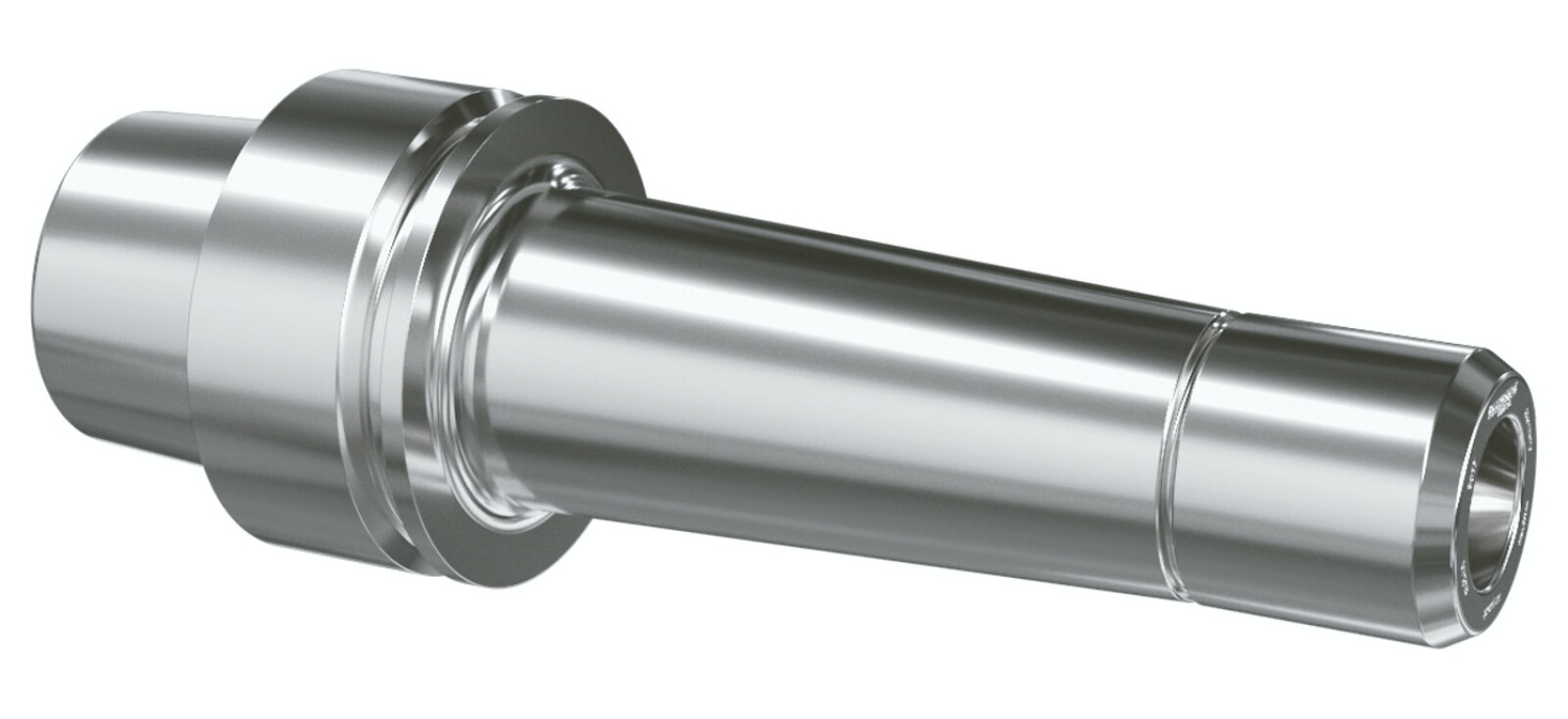

Chucks MPC - Mini Precision
MPC16C-HSK-E40-A=55

  • 61343330555
  • conical
  • high runout accuracy
  • high speed cutting
  • very slim

Quantity:

Availability:

Prices plus VAT plus shipping costs

After you have logged in, the shopping cart function appears here.
Slim precision chuck for difficult machining tasks and HSC machining Conical design for more... more
  • Slim precision chuck for difficult machining tasks and HSC machining
  • Conical design for more stability

Chuck body and clamping nut separately balanced G2,5 at 25.000 1/min or U ≤ 1 gmm

MPC high accuracy clamping nut without clamping bridging. Concentricity of ≤ 3 µm with GERC-HP collets.

Interface: HSK-E
Size: 40
Length: < 100 mm
Type: ER
clamping range: ER16 - 1-10 mm

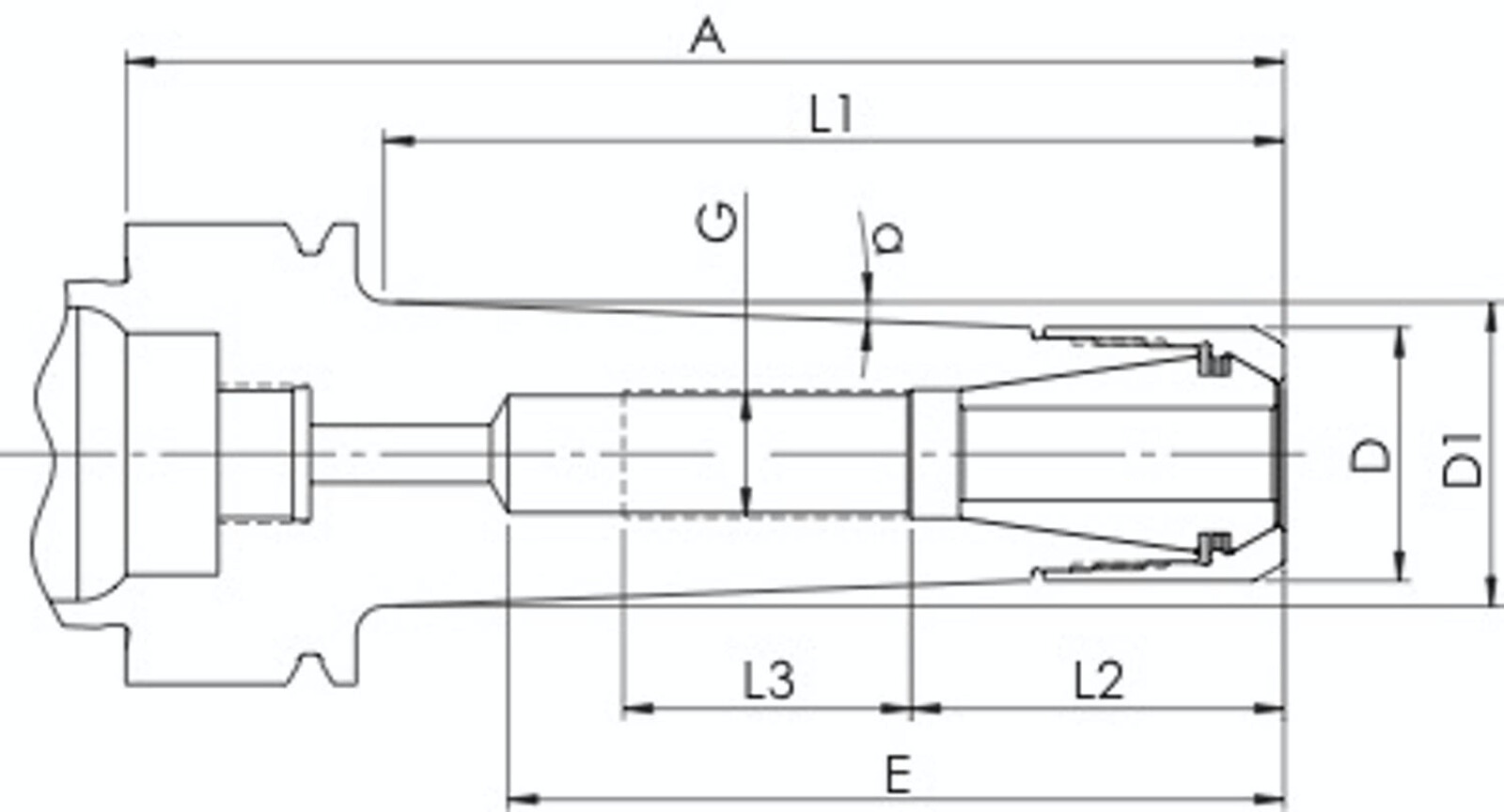

TECHNICAL DATA

MPC16C-HSK-E40-A=55
A55 mm
D = Wrench Ø22 mm
max. 1/min42000 1/min
E32 mm
D123,5 mm
a4,5° Grad
L131,5 mm
L2--- mm
L3--- mm
G---
