Preview: MPC11-HSK-E25-A=35

Preview: MPC11-HSK-E25-A=35

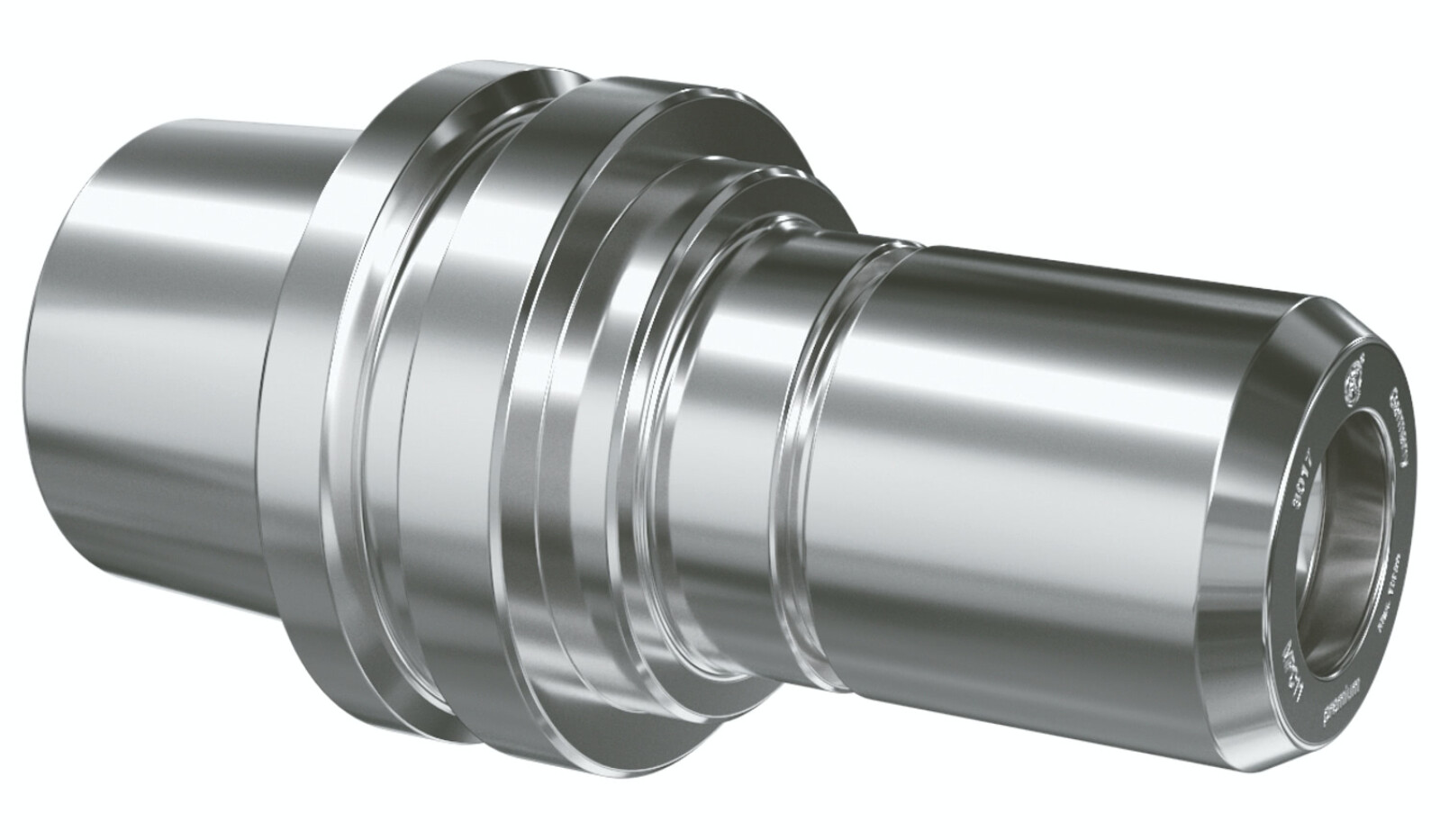

MPC11-HSK-E25-A=35

MPC11-HSK-E25-A=35

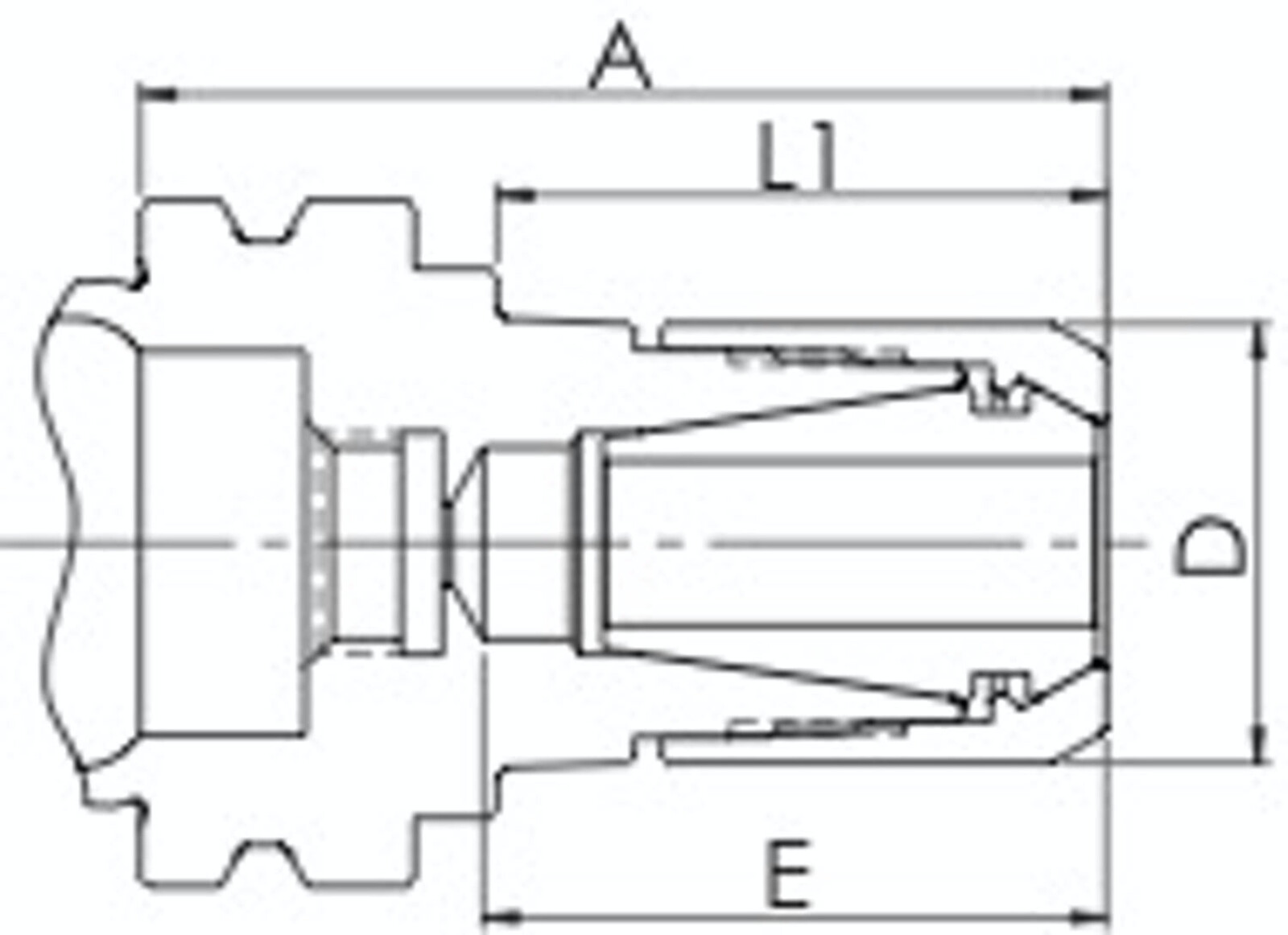

A	35 mm
D = Wrench Ø	16 mm
max. 1/min	60000 1/min
E	22.5 mm
L1	22 mm
L2	--- mm
L3	--- mm
G	---

Note: May include deviations

Order number: 61321340355
EAN-NR: 61321340355

high runout accuracy
high speed cutting
very slim

Quantity:

Availability:

Immediately

~ 5 working days

3 weeks

4 weeks

5 weeks

6 weeks

On request

Prices plus VAT plus shipping costs

Very slim precision chuck with optimum interference contour, ideal for HSC machining... more

Very slim precision chuck with optimum interference contour, ideal for HSC machining
Cylindrical design for tight spaces

Chuck body and clamping nut separately balanced G2,5 at 25.000 1/min or U ≤ 1 gmm

MPC high accuracy clamping nut without clamping bridging. Concentricity of ≤ 3 µm with GERC-HP collets.

Interface:	HSK-E
Size:	25
Length:	< 100 mm
Type:	ER
clamping range:	ER11 - 1-7 mm

Downloads Downloads

STEP

DXF

TECHNICAL DATA

MPC11-HSK-E25-A=35

A	35 mm
D = Wrench Ø	16 mm
max. 1/min	60000 1/min
E	22.5 mm
L1	22 mm
L2	--- mm
L3	--- mm
G	---
