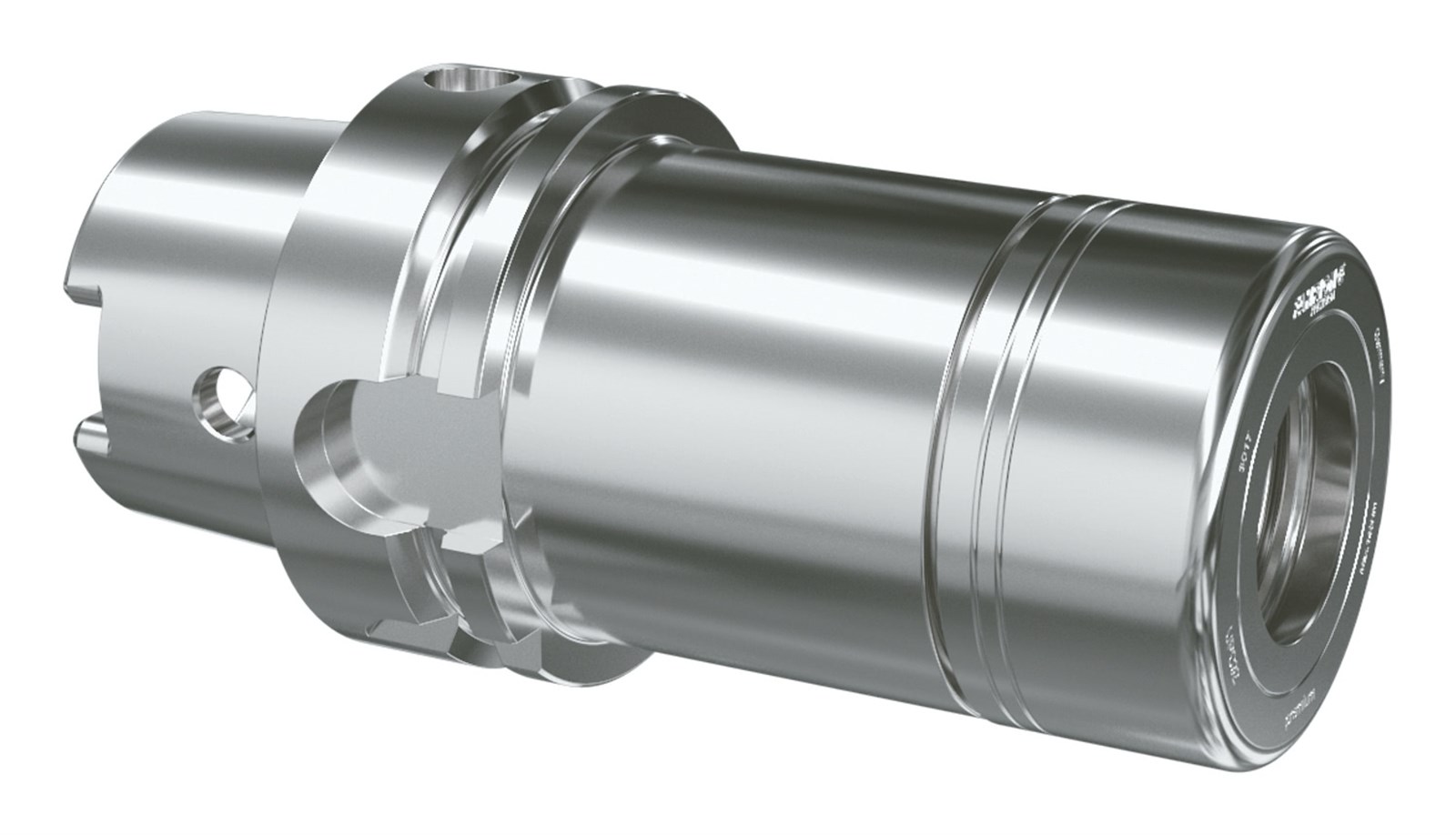

Chucks UPC - Ultra Power
UPC32-HSK-A63-A=100

UPC32-HSK-A63-A=100
UPC32-HSK-A63-A=100

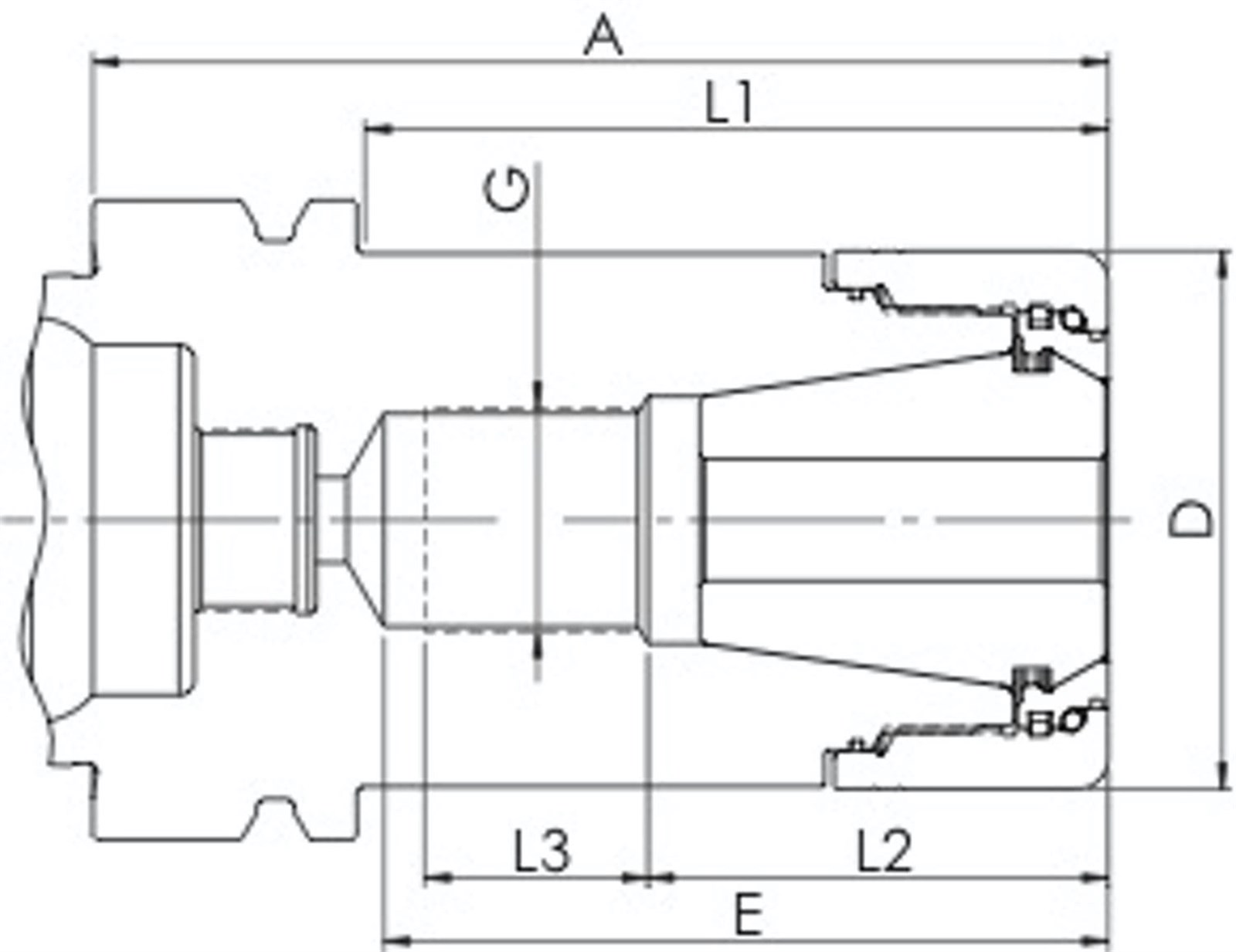

A100 mm
D = Wrench Ø53 mm
E72 mm
L174 mm
L245 mm
L322 mm
GM22x1,5


Note: May include deviations

Chucks UPC - Ultra Power
UPC32-HSK-A63-A=100

  • 67166301005
  • extremely rigid
  • good damping
  • high runout accuracy
  • very compact
  • very high holding force

Quantity:

Availability:

Prices plus VAT plus shipping costs

After you have logged in, the shopping cart function appears here.
Extremely stiff precision chuck for the most demanding tasks with predominantly radial load... more
  • Extremely stiff precision chuck for the most demanding tasks with predominantly radial load
  • Cylindrical design with a multi-part clamping nut for optimised damping and maximum stability

Chuck body and clamping nut separately balanced G6,3 at 18.000 1/min

UPC high accuracy clamping nut without clamping bridging. Concentricity of ≤ 3 µm with GERC-HP collets.

Interface: HSK-A
Size: 63
Length: 100 - 160 mm
Type: ER
clamping range: ER32 - 2-20 mm

TECHNICAL DATA

UPC32-HSK-A63-A=100
A100 mm
D = Wrench Ø53 mm
E72 mm
L174 mm
L245 mm
L322 mm
GM22x1,5
