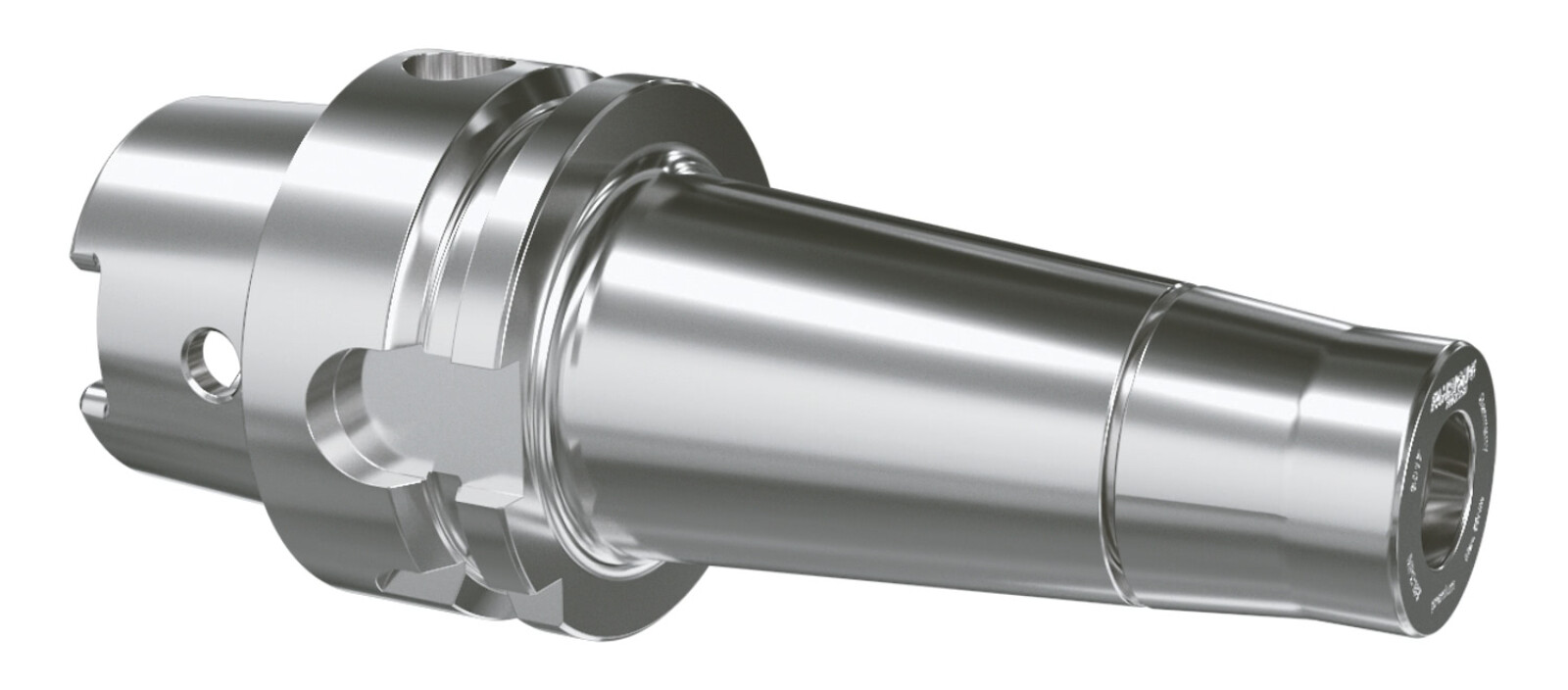

Preview: MPC16T-HSK-A50-A=65

Preview: MPC16T-HSK-A50-A=65

MPC16T-HSK-A50-A=65

MPC16T-HSK-A50-A=65

A	65 mm
D = Wrench Ø	24 mm
max. 1/min	30000 1/min
E	44 mm
D1	28,9 mm
a	4,5° Grad
L1	36,5 mm
L2	--- mm
L3	--- mm
G	---

Note: May include deviations

Order number: 61153320655
EAN-NR: 61153320655

conical
high runout accuracy
high speed cutting
very slim

Quantity:

Availability:

Immediately

~ 5 working days

3 weeks

4 weeks

5 weeks

6 weeks

On request

Prices plus VAT plus shipping costs

Slim precision chuck for difficult cutting tasks and milling operations Conical design with... more

Slim precision chuck for difficult cutting tasks and milling operations
Conical design with conical clamping nut for more stability and clamping force

Chuck body and clamping nut separately balanced G2,5 at 25.000 1/min or U ≤ 1 gmm

MPC high accuracy clamping nut without clamping bridging. Concentricity of ≤ 3 µm with GERC-HP collets.

Interface:	HSK-A
Size:	50
Length:	< 100 mm
Type:	ER
clamping range:	ER16 - 1-10 mm

Downloads Downloads

PDF

STEP

DXF

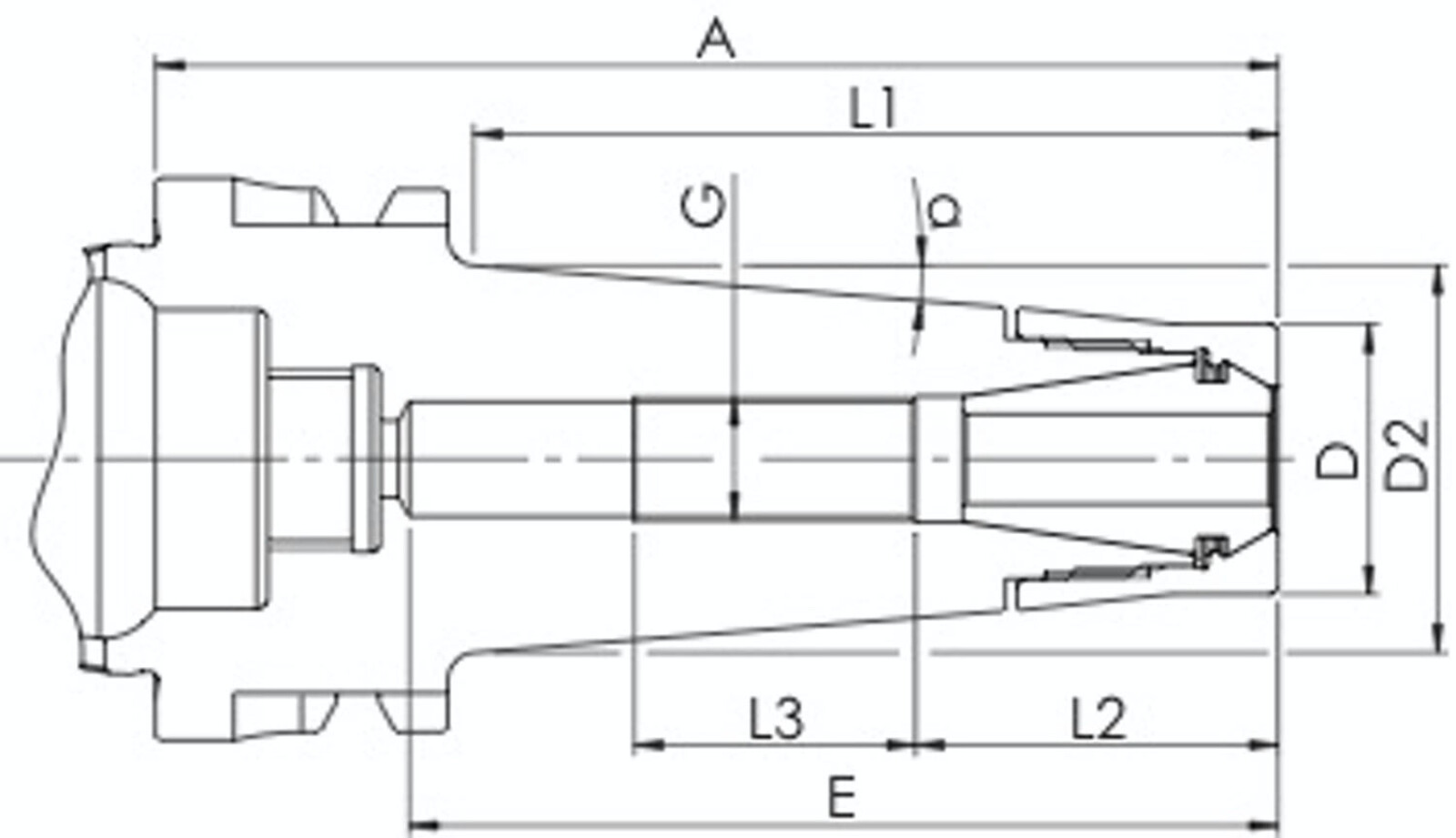

TECHNICAL DATA

MPC16T-HSK-A50-A=65

A	65 mm
D = Wrench Ø	24 mm
max. 1/min	30000 1/min
E	44 mm
D1	28,9 mm
a	4,5° Grad
L1	36,5 mm
L2	--- mm
L3	--- mm
G	---
