MPC11-HSK-A40-A=130 | MPC11-HSK-A40-A=130 | MPC | HSK-A40 | HSK-A | HSK | CENTRO|P premium | Chuck | Fahrion

To be able to use Fahrion in full range, we recommend activating Javascript in your browser.

Preview: MPC11-HSK-A40-A=130

Preview: MPC11-HSK-A40-A=130

MPC11-HSK-A40-A=130

MPC11-HSK-A40-A=130

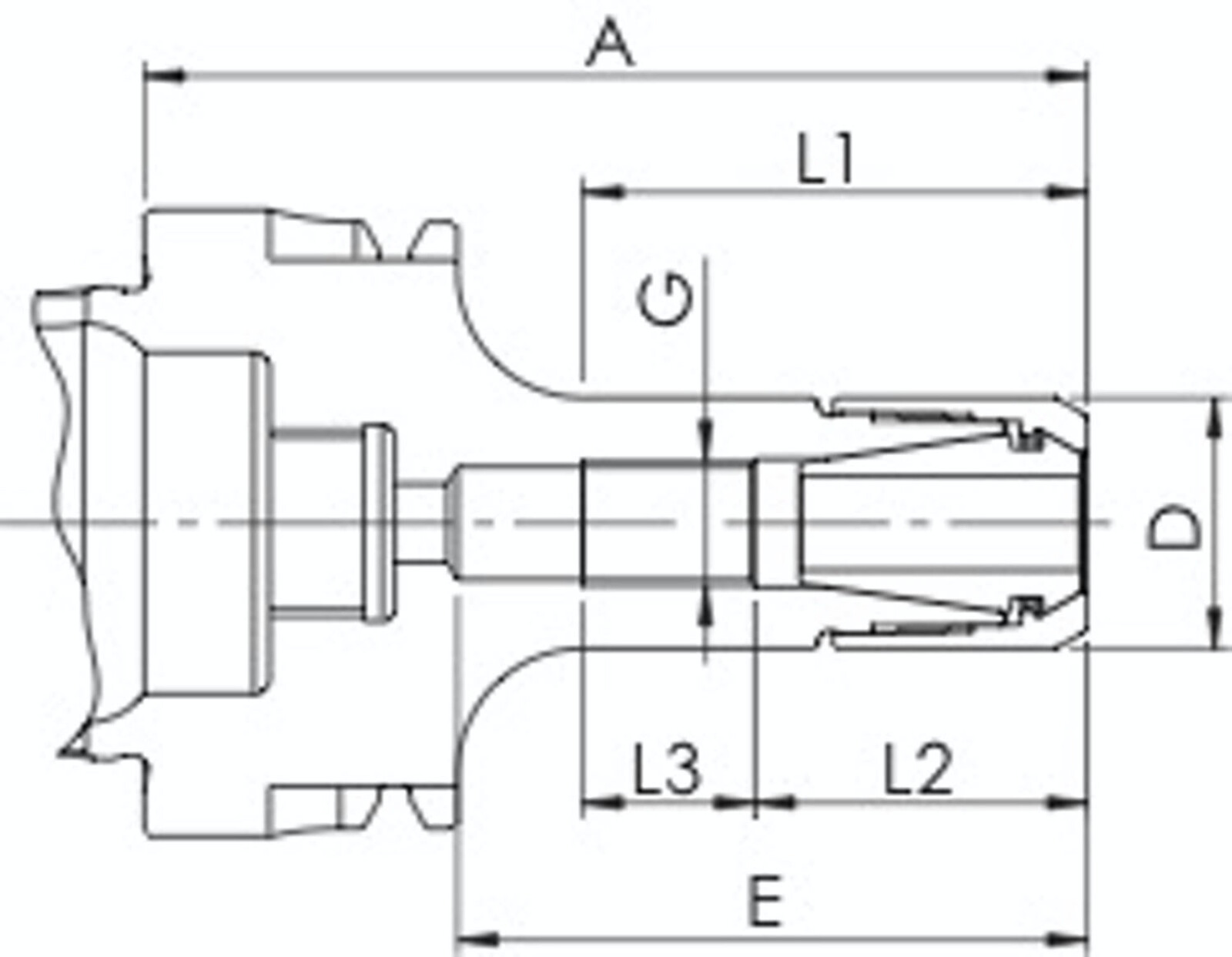

A	130 mm
D = Wrench Ø	16 mm
max. 1/min	27000 1/min
E	75 mm
L1	110 mm
L2	19 mm
L3	22 mm
G	M8x1

Note: May include deviations

Order number: 61141341305
EAN-NR: 61141341305

high runout accuracy
high speed cutting
very slim

Quantity:

Availability:

Immediately

~ 5 working days

3 weeks

4 weeks

5 weeks

6 weeks

On request

Prices plus VAT plus shipping costs

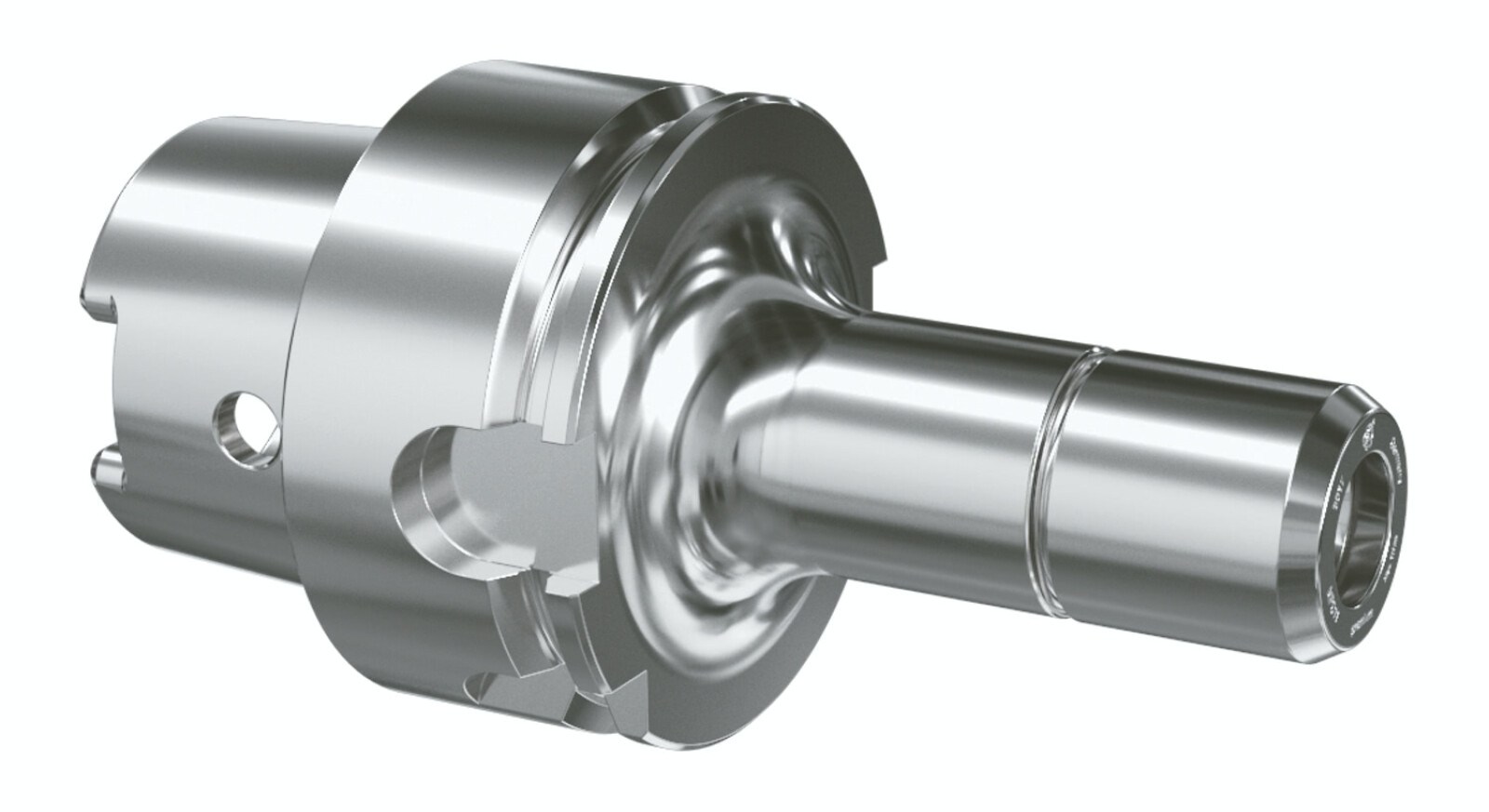

Very slim precision chuck with optimum interference contour, ideal for HSC machining... more

Very slim precision chuck with optimum interference contour, ideal for HSC machining
Cylindrical design for tight spaces

Chuck body and clamping nut separately balanced G2,5 at 25.000 1/min or U ≤ 1 gmm

MPC high accuracy clamping nut without clamping bridging. Concentricity of ≤ 3 µm with GERC-HP collets.

Interface:	HSK-A
Size:	40
Length:	100 - 160 mm
Type:	ER
clamping range:	ER11 - 1-7 mm

Downloads Downloads

PDF

STEP

DXF

TECHNICAL DATA

MPC11-HSK-A40-A=130

A	130 mm
D = Wrench Ø	16 mm
max. 1/min	27000 1/min
E	75 mm
L1	110 mm
L2	19 mm
L3	22 mm
G	M8x1

TECHNICAL DATA

MPC11-HSK-A40-A=130

A	130 mm
D = Wrench Ø	16 mm
max. 1/min	27000 1/min
E	75 mm
L1	110 mm
L2	19 mm
L3	22 mm
G	M8x1
