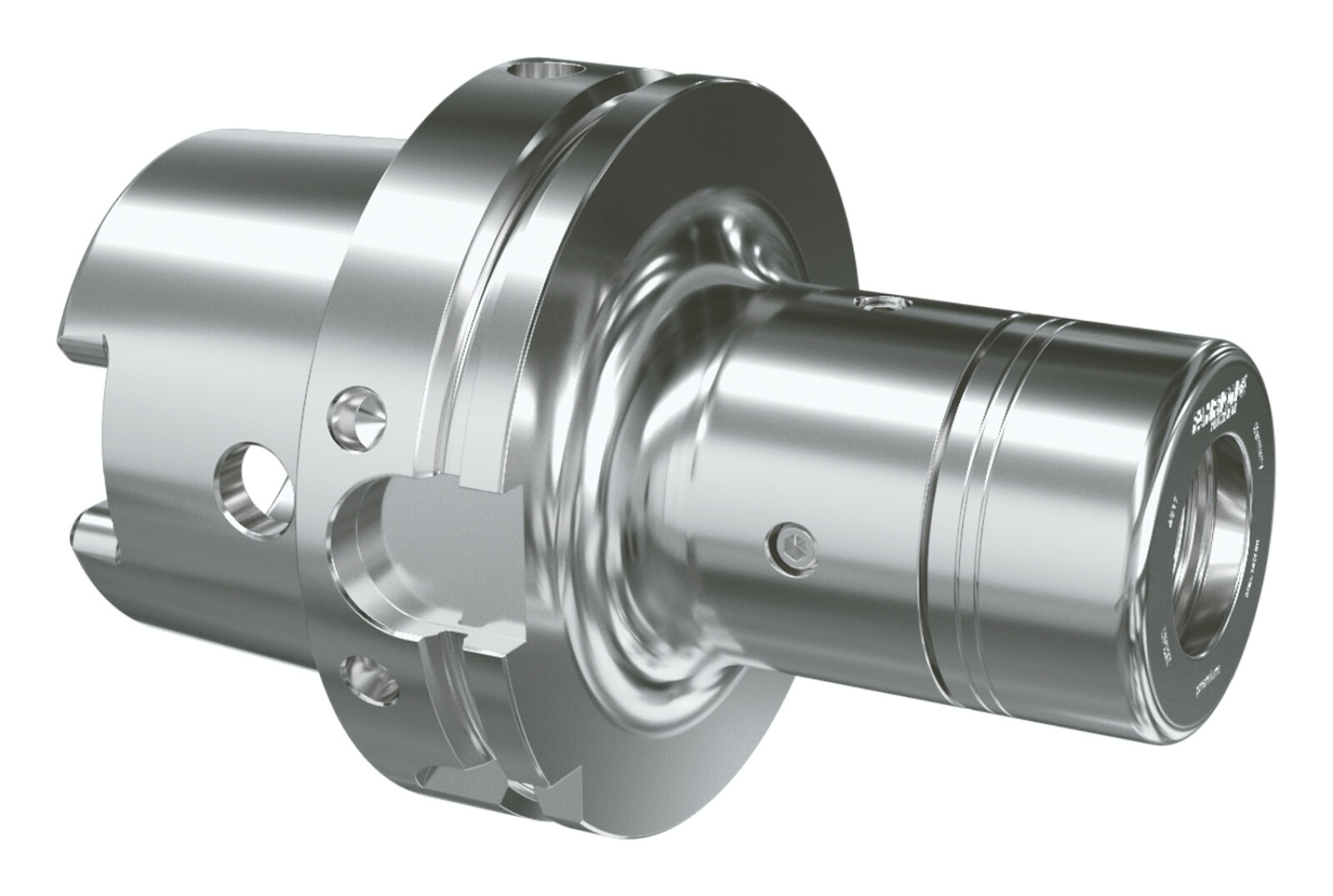

Preview: AFC32-HSK-A100-A=100 Ø 7-13mm

Preview: AFC32-HSK-A100-A=100 Ø 7-13mm

AFC32-HSK-A100-A=100 Ø 7-13mm

AFC32-HSK-A100-A=100 Ø 7-13mm

Clamping diameter	7-13mm
Clamping diameter (Ø)
Possible Range

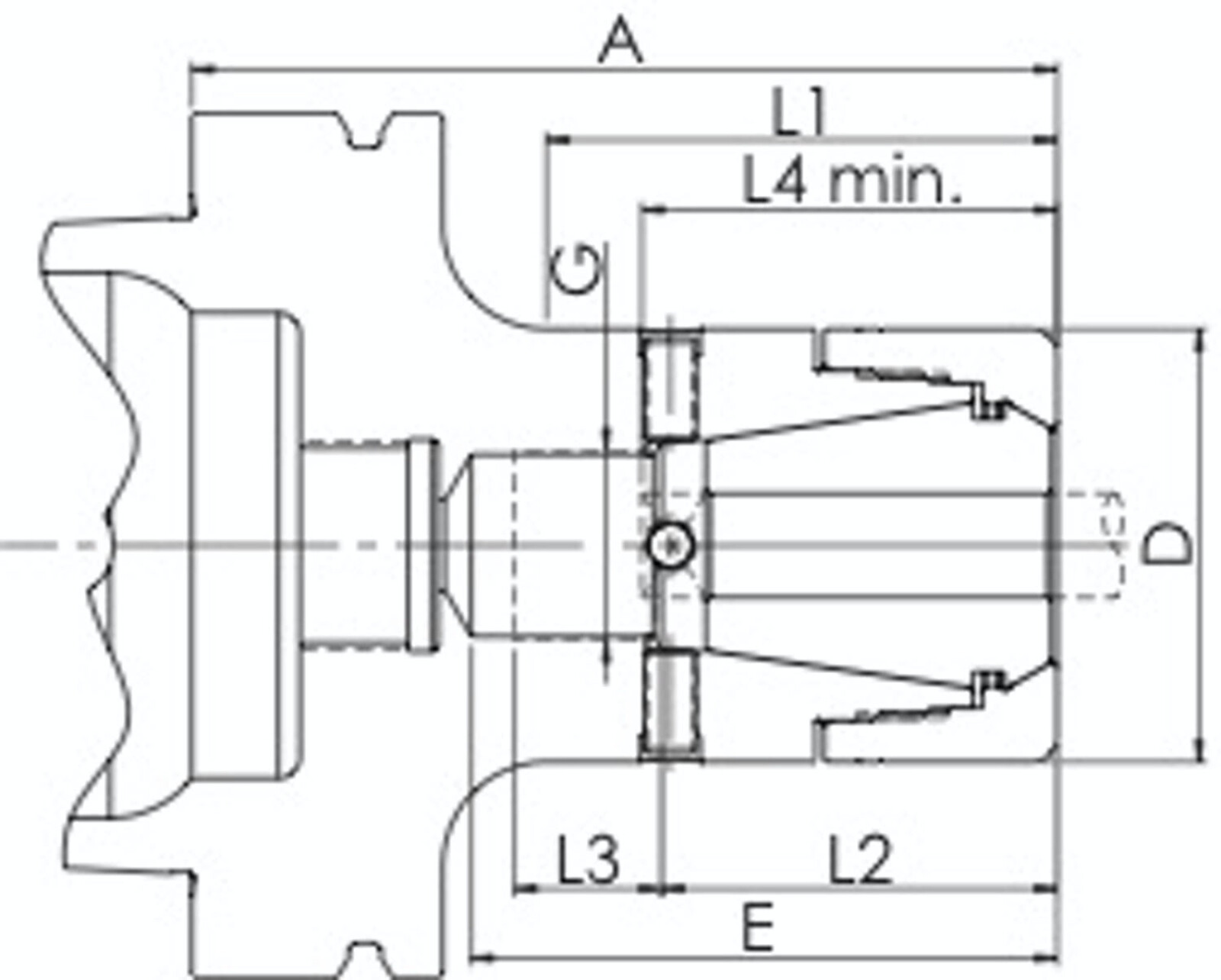

L4	47
A	100 mm
D = Wrench Ø
E	67 mm
L1	59 mm
L2	45 mm
L3	17 mm
G	M22x1,5

Note: May include deviations

Order number: 63186305245
EAN-NR: 63186305245

adjustable
no runout error
rigid

Quantity:

Availability:

Immediately

~ 5 working days

3 weeks

4 weeks

5 weeks

6 weeks

On request

Prices plus VAT plus shipping costs

Adjustable precision chuck for rubbing and other tasks with maximum concentricity Design for... more

Adjustable precision chuck for rubbing and other tasks with maximum concentricity
Design for adjustable concentricity with 4 screws on the circumference

Chuck body and clamping nut separately balanced G6,3 at 18.000 1/min

DPC high accuracy clamping nut without clamping bridging, for collets GERC-HP, adjustable runout, especially for long overhang.

Interface:	HSK-A
Size:	100
Length:	100 - 160 mm
Type:	ER
clamping range:	ER32 - 2-20 mm

Downloads Downloads

PDF

STEP

DXF

TECHNICAL DATA

AFC32-HSK-A100-A=100 Ø 7-13mm

Clamping diameter	7-13mm
Clamping diameter (Ø)
Possible Range
L4	47
A	100 mm
D = Wrench Ø
E	67 mm
L1	59 mm
L2	45 mm
L3	17 mm
G	M22x1,5
